DS-E1

"The game changer"
光カートリッジの普及を目指し開発された
DS Audio初のエントリーモデルDS-E1
私はDS-E1カートリッジが、この30年間のカートリッジ業界の歴史の中で6番目に
大きなゲームチェンジャーになるかもしれないと思っている。
他の5つ?それはDS Audioの他の兄弟達だ。
イギリス Hi Fi News オーディオ評論家 Ken Kessler
"I think it could be the sixth biggest game-changer in cartridges in three decades.
The other five? its older siblings."
Hi Fi News Ken Kessler







Details
Cartridge

DS Master1 DS-W2と同設計の振動系を使用
Using vibration system of the same design as DS Master1 and DS-W2 and DS002
DS-E1はDS Master1,DS-W2,DS002と同設計であるワイヤーサスペンション機構を搭載することで高いチャンネルセパレーションかつ安定した音楽再生を実現致しました。またスリットの位置を針先に近い位置に配置することで、より鮮度の高い情報の取り出しが可能になりました。
DS-El has a wire suspension mechanism which is the same design as DS Master 1 and DS-W2 and DS002 By implementing it, you realize high channel separation and stable music playback.
Moreover, by arranging the position of the slit at the position close to the needle point, it is possible to retrieve information with higher freshness.

アルミカンチレバーの楕円針を採用
Aluminum Cantilever with Elliptical needle
カンチレバーにはアルミニウム、針先には楕円針(無垢ダイヤモンド)を使用しております。またインジケーター部の表示部分はアクリルを使用しております。チャンネルセパレーションスペックをDS002よりも1db低く設定することにより量産効率を高めております。
Like the more expensive DS Audio cartridges, the DS-E1 cartridge body is machined from aluminum and echoes their distinctive design for best optical performance. The DS 002 features an aluminum cantilever and Elliptical needle to accurately reproduce the music recorded on the vinyl record album.
Equalizer

オペアンプを使用することにより小型化を達成
Small size, big performance

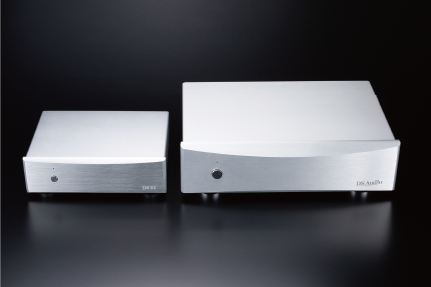

DS-E1イコライザーでは増幅素子にオペアンプを採用することにより部品点数を大きく削減し、その結果DS002イコライザーと比較し約1/3の大きさとなっております。
he DS-El equalizer employs an operational amplifier at the heart of its amplification circuit, greatly reducing the number of components required. This also allows the DS-E1 to posses an extremely compact form factor, around 1/3 the size of the DS-002 equalizer, whilst still offering the world leading performance you have come to expect from DS Audio.
Equalizer

日本にて一つ一つ手作りで製造
Proudly manufactured in Japan

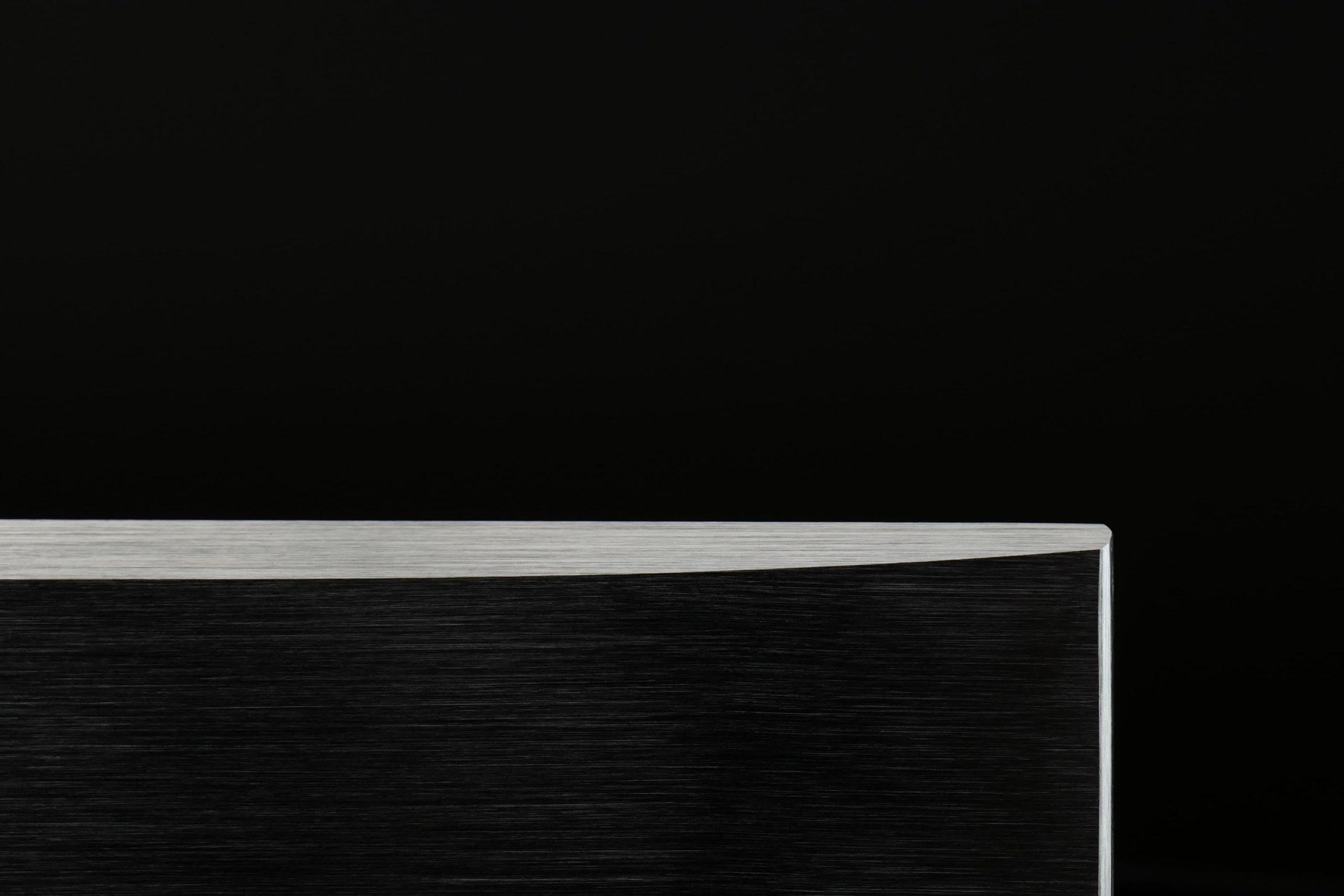

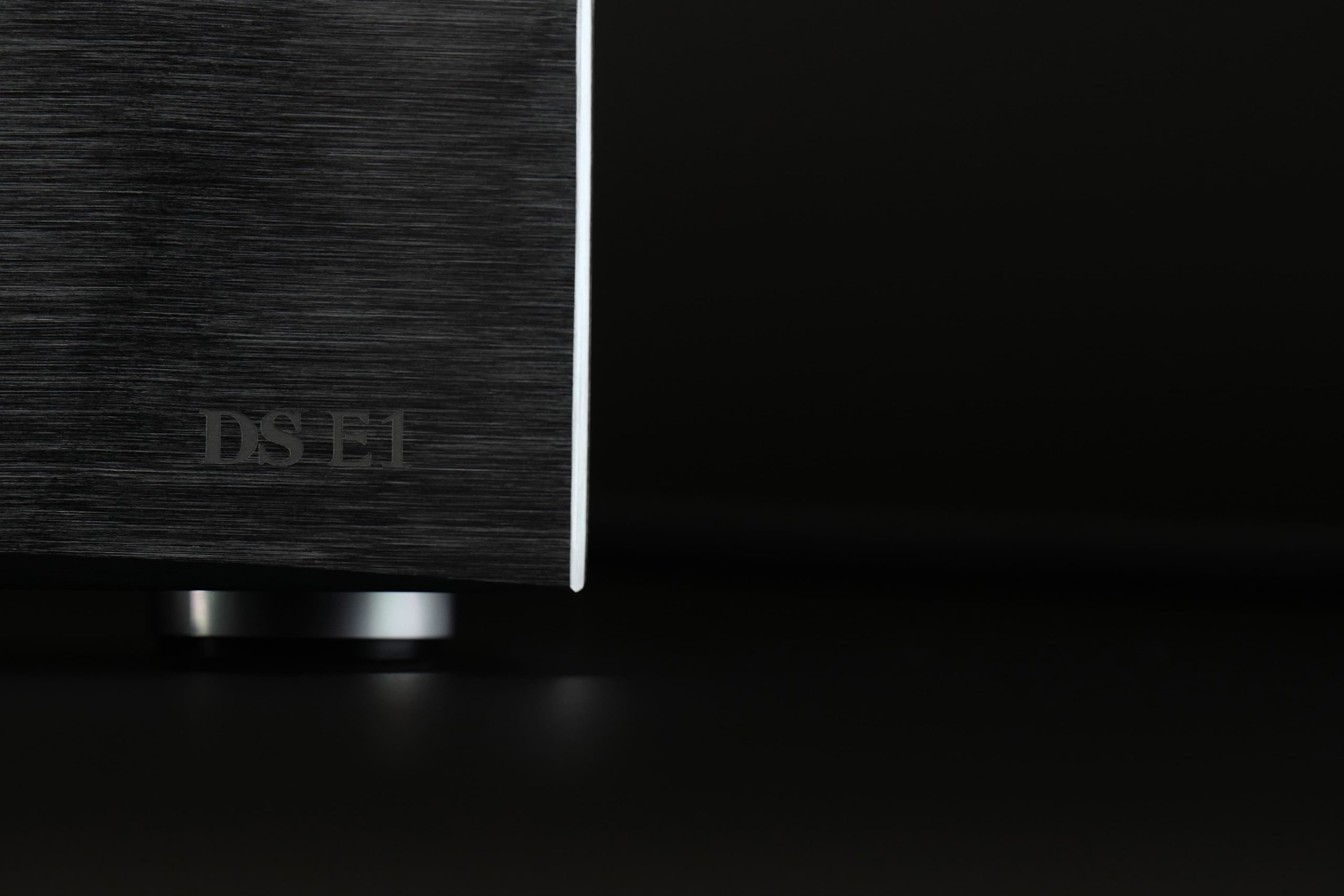

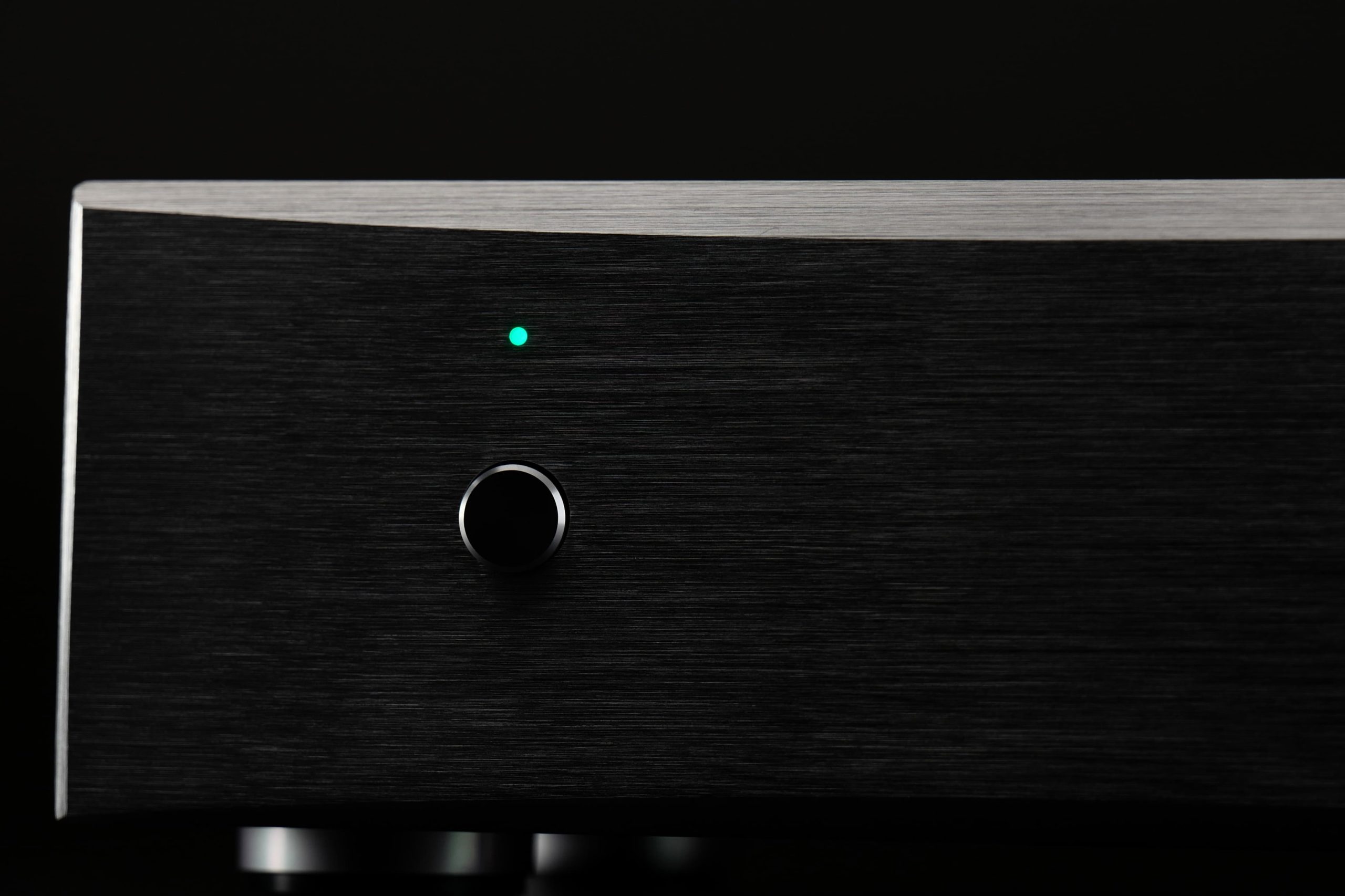

DS-E1では上位機種製品と同様にフロントパネルはアルミニウム完全削り出し部品を採用し、製造は相模原市にあるDS Audio社屋にて熟練した技術者により一つ一つ手作りで製造しております。
The DS-E1 features precision machined aluminum casework, an element it shares in common with its illustrious stable-mates. Each DS-E1 is manufactured by hand in DS Audio's facility in Sagamihara City.
Cartridge
- DS-E1 カートリッジ
- DS-E1 Optical Cartridge
¥100,000 tax excluded
- 発電方式
- Signal output
- 光電型
- Photo-electric Conversion
- チャンネルセパレーション
- Channel separation
- 24db
- 24db more (1kHz)
- 質量
- Weight
- 8.1g
- 8.1g
- 出力電圧
- Output signal level
- 500mV以上(イコライザー出力)
- 50mV more
- カンチレバー
- Canti-lever
- アルミ
- Alminum
- ボディ材
- Body material
- アルミ削り出し
- Alminum
- 針圧
- Needle pressure
- 1.6g-1.8g(1.7g適正)
- 1.6g~1.8g(1.7g is recommended)
- 針先
- Stylus
- 楕円
- Elliptical Needle
Equalizer
- DS-E1 イコライザー
- DS-E1 Equalizer for Optical Cartridge
¥100,000 tax excluded
- 定格出力電圧
- Output voltage
- 500mV(1kHz)
- 500mV(1kHz)
- 出力インピーダンス
- Output impedance
- 120Ω
- 120Ω
- プリアンプインプットインピーダンス
- Pre amp input impedance
- 10kΩ以上
- More than 10kΩ
- 入力端子
- Input terminal
- RCA端子
- RCA terminal
- 出力端子
- Output terminal
- RCA端子(2出力をスイッチにて切り替え)
- RCA terminal (Switch two outputs with switch)
- サイズ
- Size
- W20cm×H7cm×D16cm
- W20cm×H7cm×D16cm
- 質量
- Weight
- 1.4kg
- 1.4kg
