DS-W2

Recipient of
ʻThe worldʼs best cartridge awardʼ
ドイツAUDIO誌にて
創刊以来歴代最高得点を獲得し
世界最高のカートリッジとの称号を獲得DS-W2
ドイツAUDIO誌にて創刊以来歴代最高得点を獲得し世界最高のカートリッジとの称号を獲得
ステレオグランプリ2018受賞 & ベストバイ(フォノカートリッジ部門)第一位 ダブル受賞
"It does not happen often that it makes me speechless.
But what the DS Audio DS-W2 gets out of a record really mocks any description.
In terms of dynamics and transparency, I have never heard a better pickup in my life. ”







Details
Cartridge

ドイツの大手オーディオ専門誌に世界一と認められたDS-W1の正統な後継機種

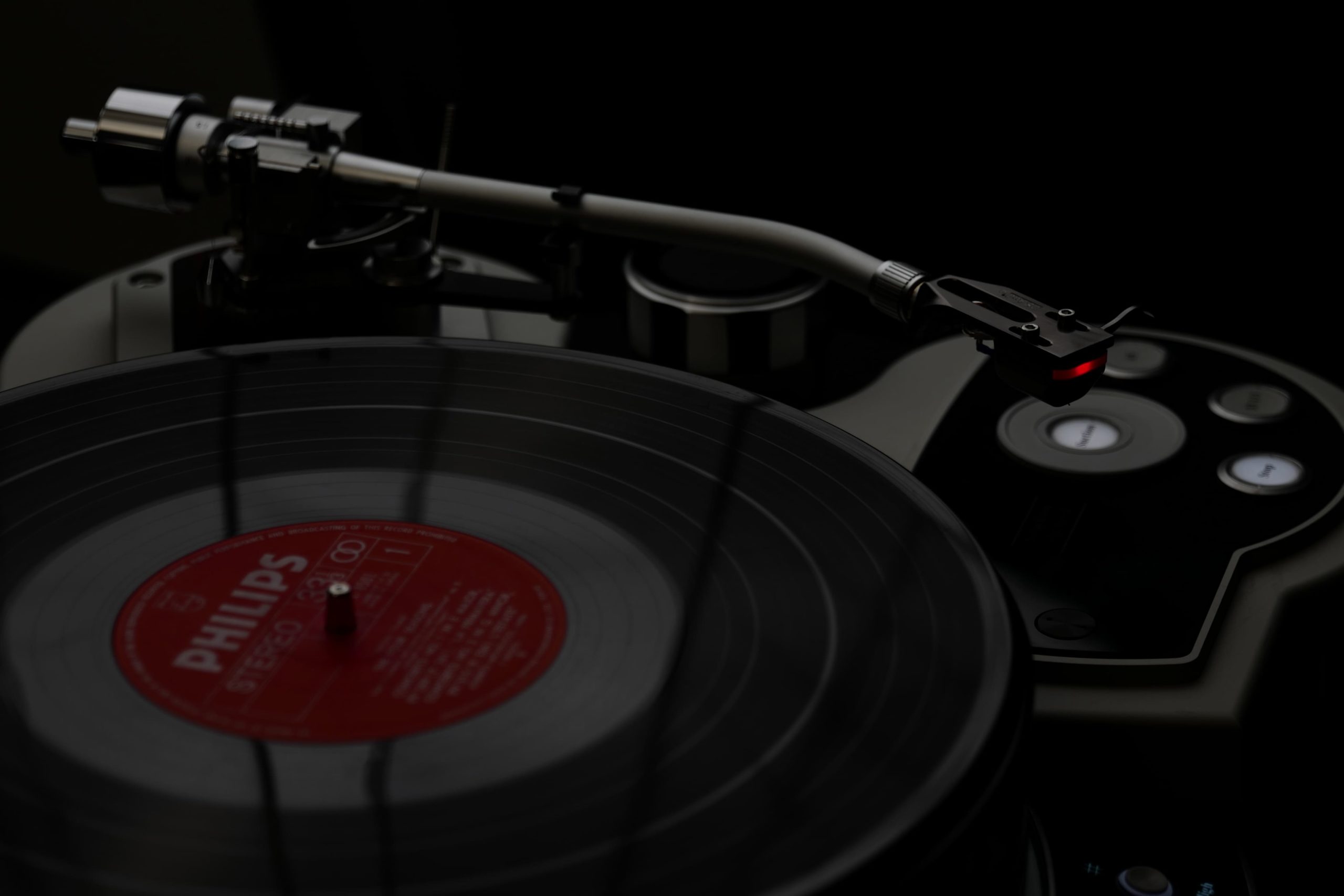

World beating optical cartridge technology

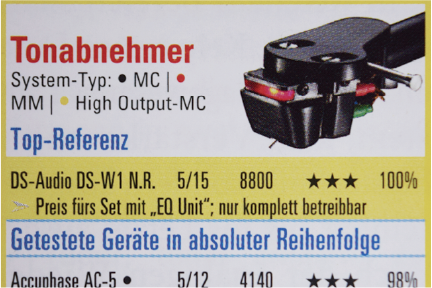

ドイツの大手オーディオ専門誌「Stereo」誌と「AUDIO」誌から創刊以来歴代最高評価を獲得し、世界一のカートリッジと評価されたDS-W1。その世界一のカートリッジと評されたDS-W1を凌ぐ性能を誇るのがこのDS-W2です。
The DS-W2 is the successor to our DS-W1 optical cartridge design, which was awarded the title of world's best phono cartridge by two major audio magazines in Germany: Stereo and Audio. This praise helped to establish the popularity of our unique technology, setting a high standard and paving the way for further development. The extensive advancements and refinements of the DS-W2 design have resulted in performance that is far in excess of the already impressive DS-W1.

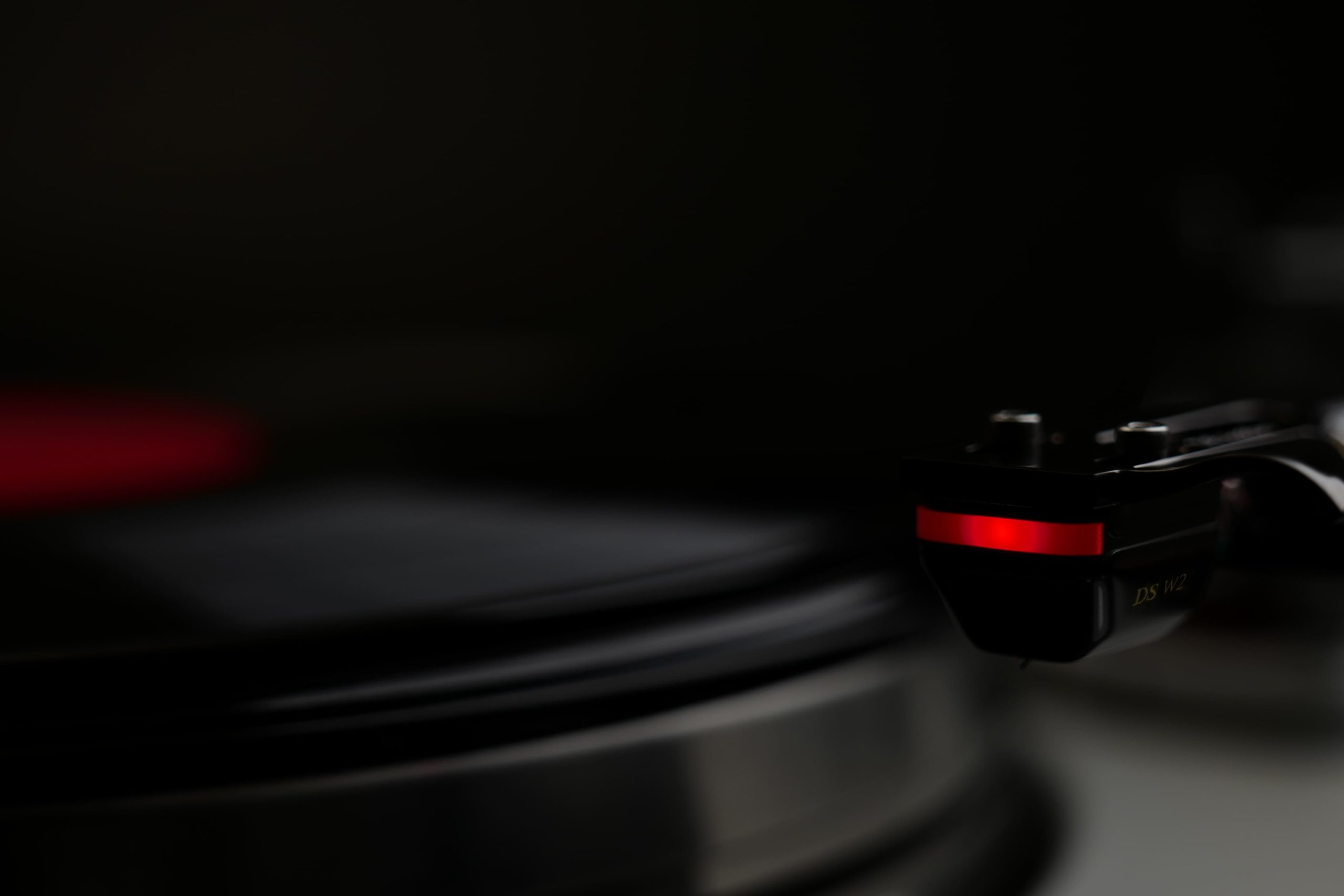

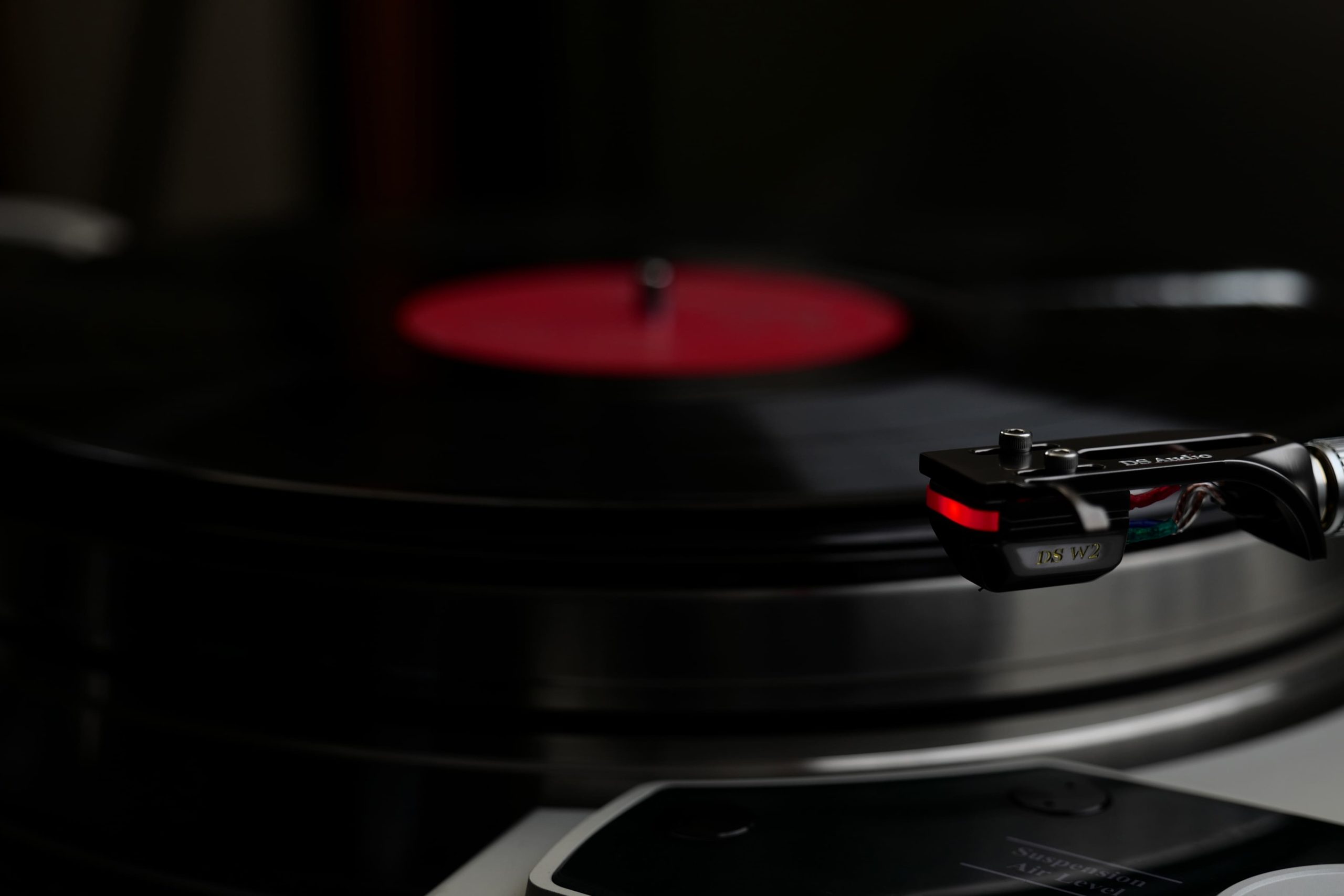

ボロンカンチレバーにマイクロリッジ針を使用

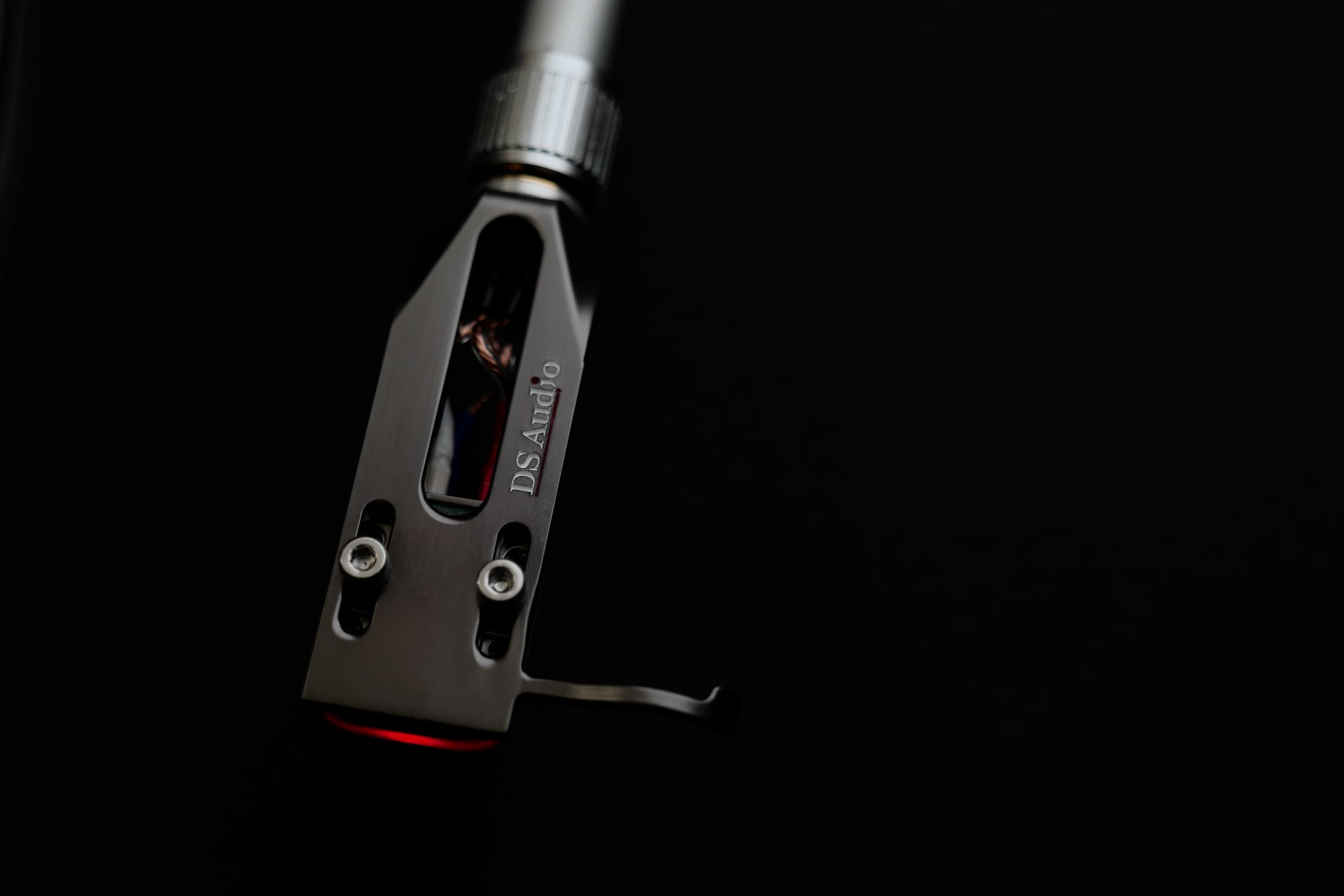

Boron Cantilever with Micro-ridge stylus
DS-W2カートリッジでは、ボロンカンチレバーにマイクロリッジ針を採用しております。(DS-W1はボロンカンチレバーにシバタ針の組み合わせ)またLED表示部分には山梨県で手作りして製造してもらっている「天然ローズクオーツ」を使用する資沢な作りとなっております。
The DS-W2 is equipped with a boron cantilever and Micro-Ridge stylus representing a further upgrade from the Shibata stylus used on its predecessor DS-W1.
This combination precisely traces the record groove and yields the utmost quality of sonic reproduction. A hand-crafted, “Natural Rose quartz” LED indicator adds an eye-catching detail to this unique piece of audio technology.

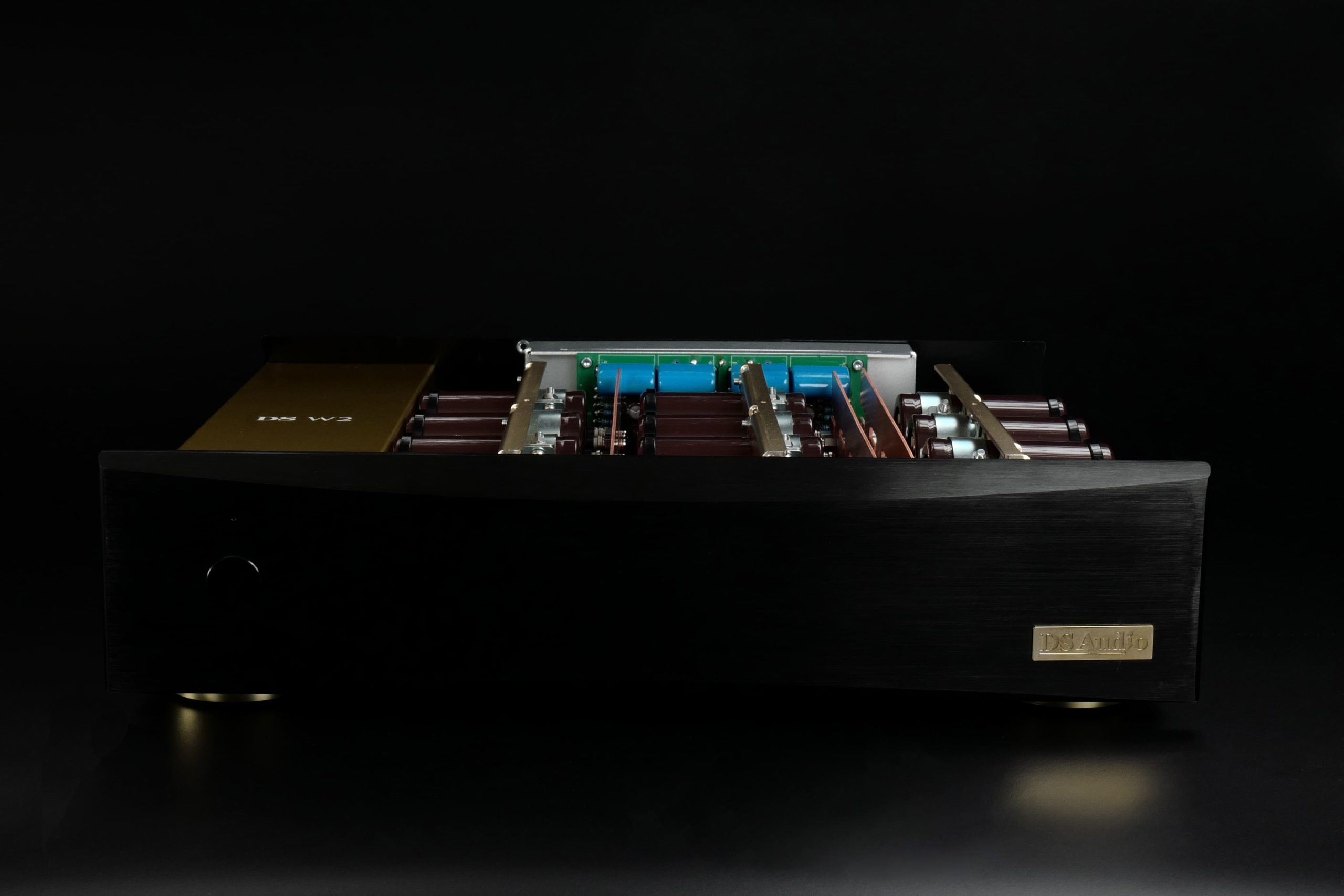

Equalizer

DS-W1イコライザーと比べ、圧倒的にパワーアップした電源部分

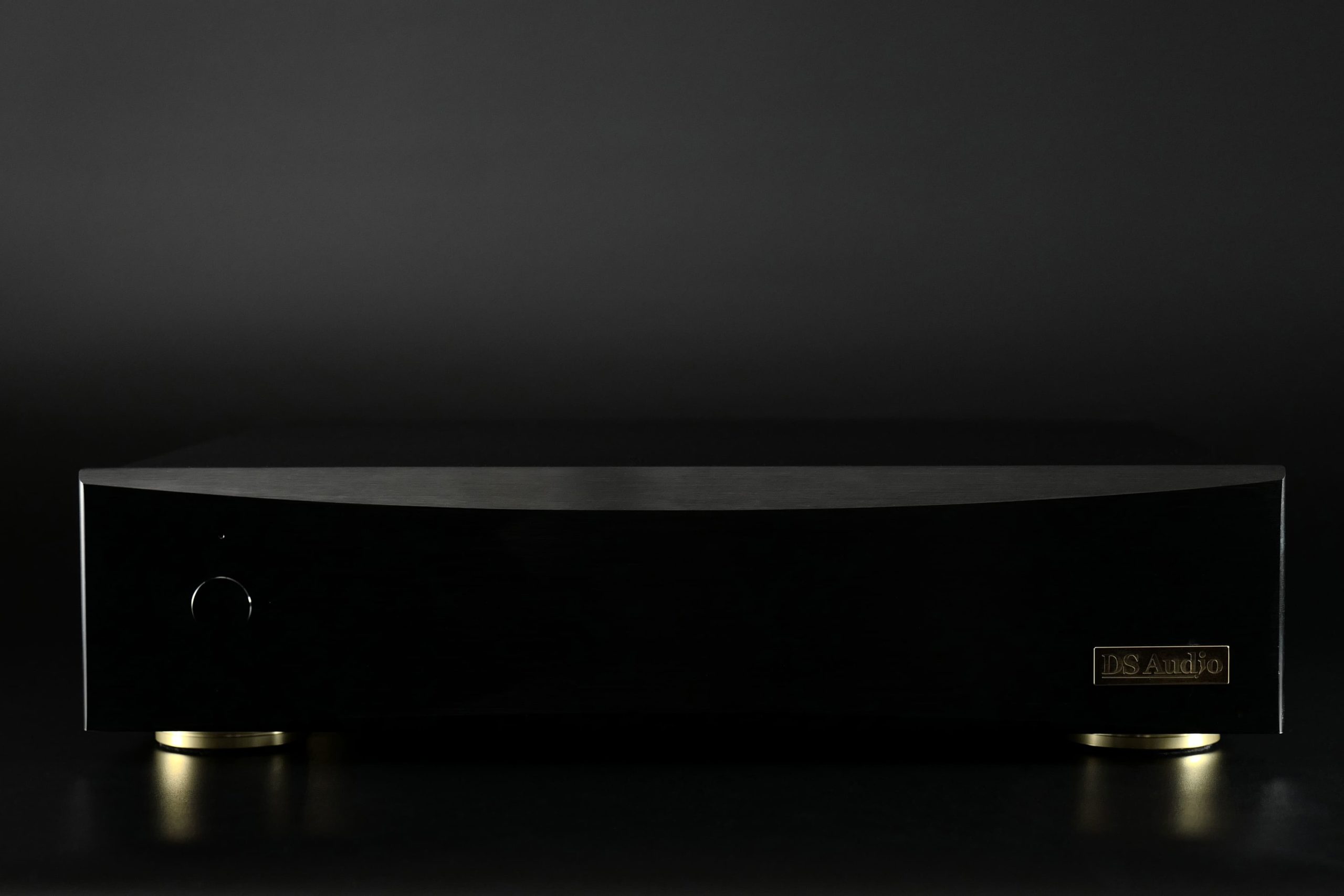

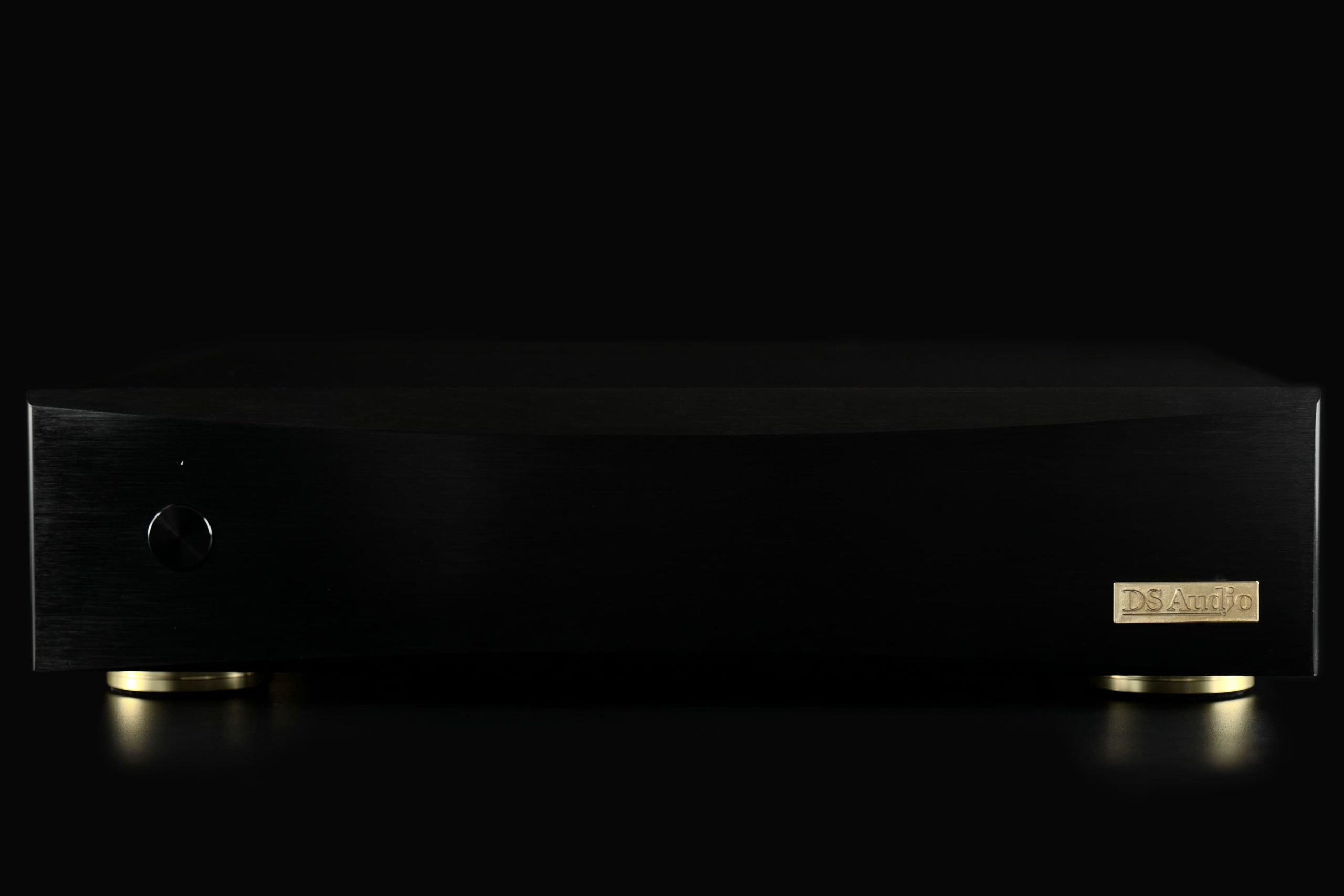

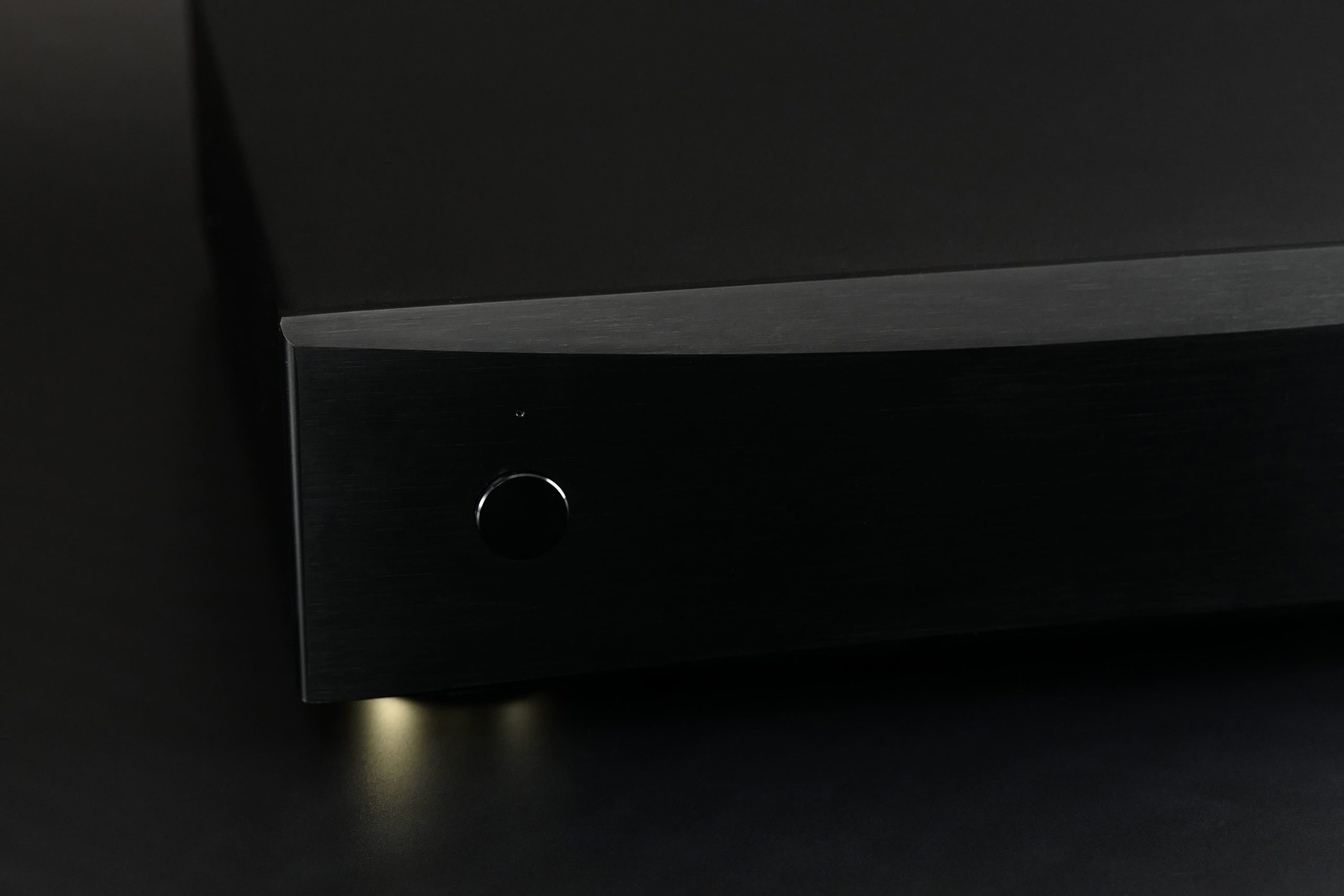

Upgraded equalizer featuring a sophisticated power supply

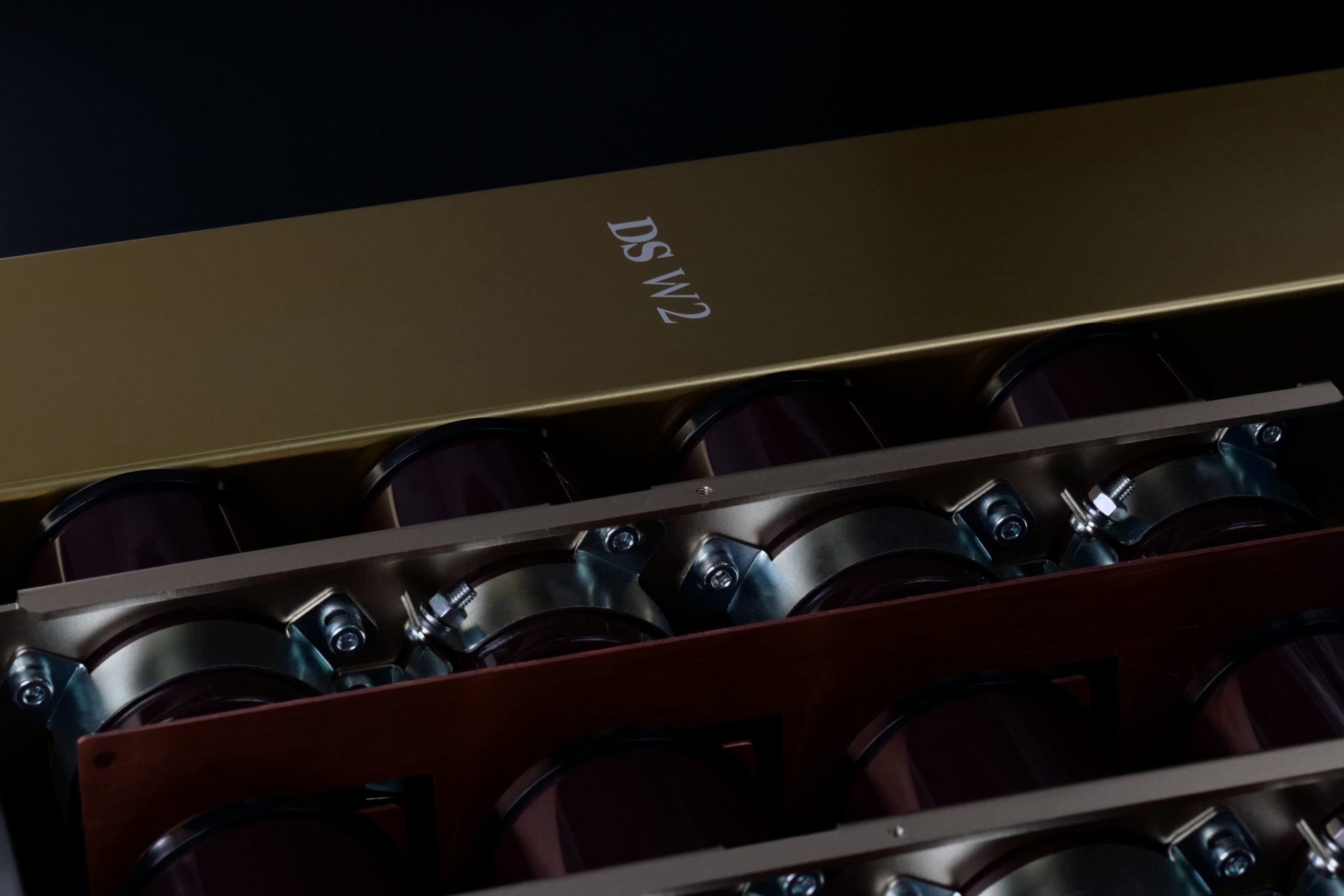

DS-W2イコライザーでは、56000μFのコンデンサが12本とパワーアンプを凌ぐ程の物量投入を行い電源部を強化しております。またコンデンサをつなぐバスバーには1.5mm厚の純銅製バスバーを使いトランス周りには1.5mm厚のシールド機構を導入することでより高いS/Nを確保致しました。このような徹底的にこだわった設計をすることにより前機種のDS-W1イコライザーより3倍ほどサイズが大きくなりましたが、より深みのある豊かな音楽再生が可能になりました。
The DS-W2 equalizer houses 12 large capacitors, each with 56000µF capacity; more than those normally found in a phono pre-amplifier. In use, the benefits of this design choice are obvious, with fantastic musical control and an effortless presentation. A 1.5mm thick pure copper plate bus-bar is employed to connect these capacitors, ensuring maximum power transfer. This also functions as a shielding plate for the transformer, revealing more low-level musical detail. All of the improvements of the DS-W2 equalizer have created a component three times larger than the predecessor DS-W1, and sonic performance is of an even greater magnitude. The result is ultimate enjoyment from your record collection.Expect to hear more from DS Audio.

フルバランスのXLR出力も搭載

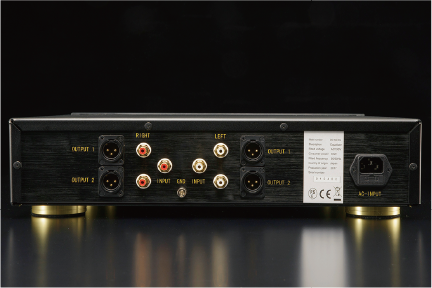

Fully balanced XLR output
DS-W2イコライザーでは、通常のRCA端子によるアンバランス出力に加えXLR端子のフルバランス出力を搭載しております。(1番グランド2番ホット3番コールド)
Offering a choice of outputs and low frequency response options, the DS-W2 preamp/equalizer features two sets of RCA and XLR outputs and two separate low frequency cut-off points.

抵抗と抵抗の足をより合わせながら作る手作り基板を使用

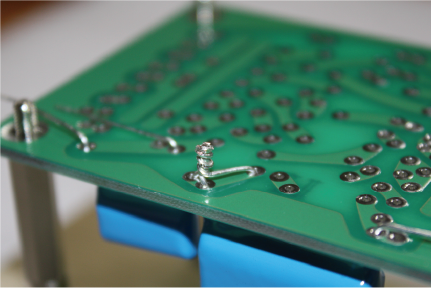

Hand-made in Japan circuit board
DS Audioの製品では、音楽信号が流れる部分のインピーダンスを可能な限り低くし音の鮮度を高める為抵抗一つ一つの足を手作業で直接撚り合わせ、かつプリント基板の上にも裏打ち配線を加えて製造しております。
Every component part used in our products is tested and evaluated by our expert Japanese technicians. In addition to using a specially printed circuit board, twist-connection of the component legs is further evidence of DS Audio’ s excellent attention to detail. Each and every product is hand-made and quality assured by our skilled engineers.
Cartridge
- DS-W2 カートリッジ
- DS-W2 Optical Cartridge
¥400,000 tax excluded
- 発電方式
- Signal output
- 光電型
- Photo-electric Conversion
- チャンネルセパレーション
- Channel separation
- 25db以上(1kHz)
- 25db more (1kHz)
- 質量
- Weight
- 8.1g
- 8.1g
- 出力電圧
- Output signal level
- 500mV以上(イコイライザー出力)
- 50mV more
- カンチレバー
- Canti-lever
- ボロン
- Boron
- ボディ素材
- Body material
- アルミ削りだし
- Aluminum
- 針圧
- Needle pressure
- 1.6g~1.8g (適正1.7g)
- 1.6g~1.8g (1.7g is recommended)
- 針先
- Stylus
- マイクロリッジ針
- Micro Ridge
Equalizer
- DS-W2 イコライザー
- DS-W2 Equalizer for Optical Cartridge
¥800,000 tax excluded
- 定格出力電圧
- Output voltage
- 500mV(1kHz)
- 500mV(1kHz)
- 出力インピーダンス
- Output impedance
- 120Ω
- RCA 120Ω XLR 600Ω
- プリアンプインプットインピーダンス
- Pre amp input impedance
- 10kΩ以上
- More than 10kΩ
- 入力端子
- Input terminal
- RCA端子
- RCA terminal
- 出力端子
- Output terminal
- RCA端子×2,XLR×2
- RCA terminal×2, XLR terminal×2
- サイズ
- Size
- W43cm×H10.7cm×D38.4cm
- W43cm×H10.7cm×D38.4cm
- 質量
- Weight
- 12.0kg
- 12.0kg
